Document System Tutorial Part 2 - Creating and Registering a Model

In this part, we will discuss about creating and registering an external models in our application.

Before we start, let’s list down what are the requirements needed in order to build a document system. In each models, what are the necessary fields to meet the user’s goals.

In this tutorial, we will create the following models listed below:

• Channel
• DocumentGroup
• DocumentUser
• DocumentVersion
• Document
• FolderGroup
• FolderUser
• Folder

Let’s create a new file in the models folder named folder.go with the following codes below:

package models

import (
    "github.com/uadmin/uadmin"
)

// Folder !
type Folder struct {
    uadmin.Model
    Name     string
    Parent   *Folder
    ParentID uint
}

As you notice, the Parent field has a data type of a pointer of Folder and ParentID field of uint. This is a foreign key. It links the Parent field to the Folder model that returns the name.

Go to the main.go and register the Folder model inside by using uadmin.Register.

func main() {
    // Register models to uAdmin
    uadmin.Register(
        models.Folder{},
    )

    // Some codes
}

It is written as models.Folder{} because models is the folder/package name while Folder{} is the name of the model struct.

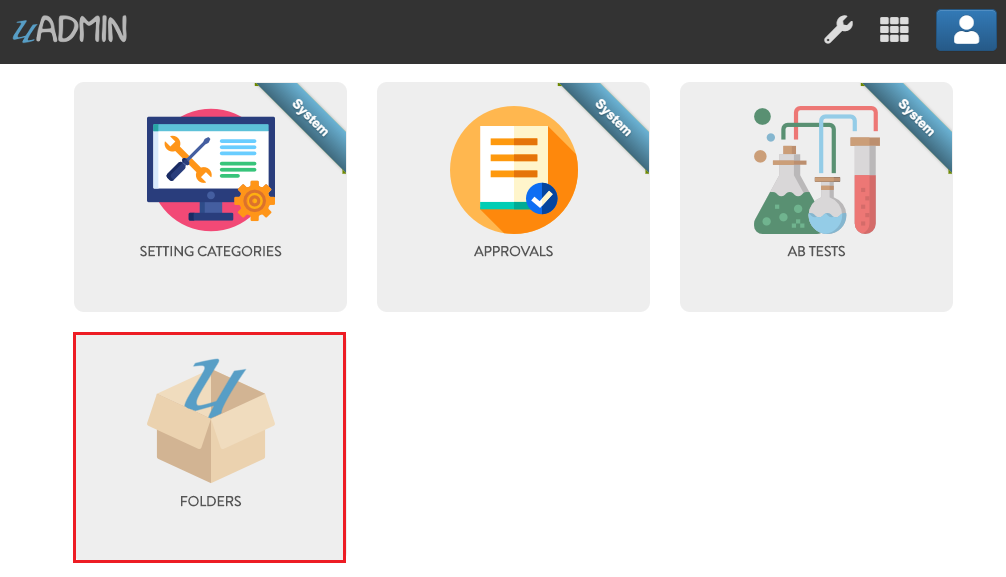

Now run your application. As expected, the folder model is added in the Document System Dashboard. Click on FOLDERS.

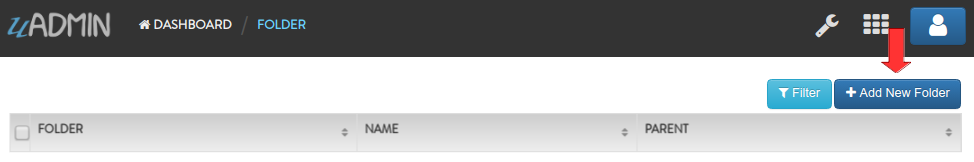

Click “Add New Folder”.

Let’s add a record named “Development” as an example.

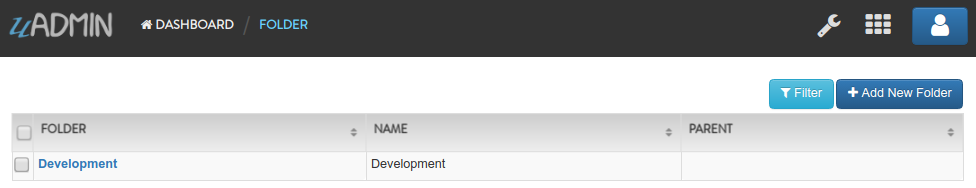

Result

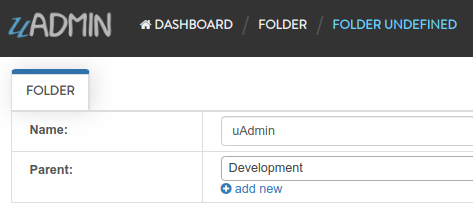

Let’s add another record named “uAdmin” that has a parent of “Development”. In short, the path will look like this: Development/uAdmin where Development is a parent folder and uAdmin is a subfolder.

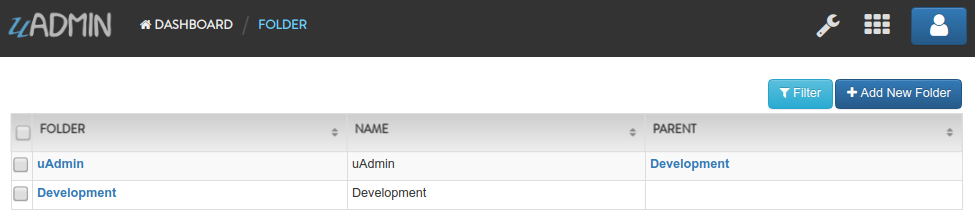

Result

Click here to view our progress so far.

In the next part, we will talk about linking models using a foreign key for folders.

• Document System Tutorial Part 2 - Creating and Registering a Model (Current Progress)
