uadmin.ABTest¶

ABTest is a model that stores an A/B test.

Structure:

type ABTest struct {
    Model
    Name       string   `uadmin:"required"`
    Type       ABTestType `uadmin:"required"`
    StaticPath string
    ModelName  ModelList
    Field      FieldList
    PrimaryKey int
    Active     bool
    Group      string
}

Here are the following fields and their definitions:

Name - The name of the A/B Test
Type - A list of test types from a dropdown menu
StaticPath - The path assigned in the static
ModelName - A list of registered models
Field - A list of fields from schema for a registered model
PrimaryKey - Used to uniquely identify each row in the table
Active - Checks whether the A/B Test is Active
Group - The name of the group

There are 2 ways you can do for initialization process using this function: one-by-one and by group.

One-by-one initialization:

func main(){
    // Some codes
    abtest := uadmin.ABTest{}
    abtest.Name = "Name"
    abtest.Type = uadmin.ABTestType(0).Static()
    abtest.StaticPath = "Static Path"
}

By group initialization:

func main(){
    // Some codes
    abtest := uadmin.ABTest{
        Name:       "Name",
        Type:       uadmin.ABTestType(0).Static(),
        StaticPath: "Static Path",
    }
}

In the following examples, we will use “by group” initialization process.

Example #1: Static¶

Part 1: HTML Template¶

Back to Top

Before you proceed, make sure you have at least the basic knowledge of HTML. If you are not familiar with HTML, we advise you to go over W3Schools.

In this tutorial, we will use Bootstrap 4. For the tutorials, click here.

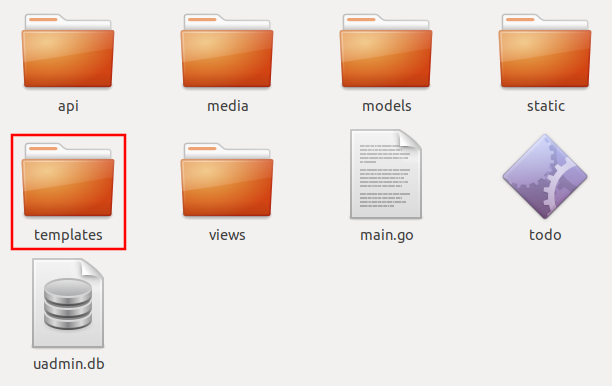

First of all, go to your project folder and select templates.

../../_images/templatesfolderhighlighted.png

Inside the templates folder, create a new file named index.html.

Inside the index.html, create an HTML5 structure following the codes below and change the title from Document to Campaign.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">

    <!-- Latest compiled and minified CSS -->
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css">

    <title>Campaign</title>
</head>
<body>
    <div class="container-fluid">
        <h1>Campaign</h1>
    </div>

    <!-- jQuery library -->
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.4.1/jquery.min.js"></script>

    <!-- Popper JS -->
    <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.7/umd/popper.min.js"></script>

    <!-- Latest compiled JavaScript -->
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.3.1/js/bootstrap.min.js"></script>
</body>
</html>

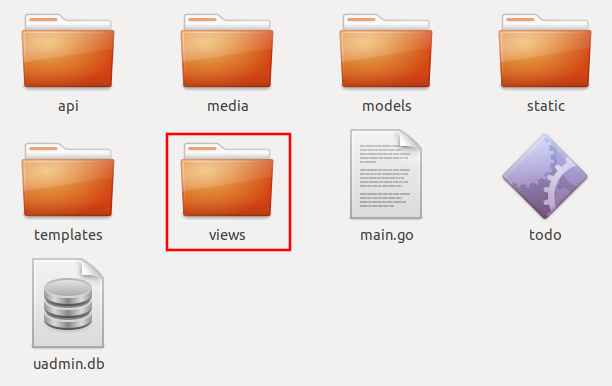

Save the file. Afterwards, go back to your project folder then select views.

../../_images/viewsfolderhighlighted.png

Inside the views folder, create a new file named campaign.go.

Inside the campaign.go, apply the following codes below to access the HTML file in the server.

package views

import (
    "net/http"

    "github.com/uadmin/uadmin"
)

// CampaignHandler !
func CampaignHandler(w http.ResponseWriter, r *http.Request) {
    // Access HTML file
    uadmin.RenderHTML(w, r, "templates/index.html", nil)
}

Establish a connection in the main.go to the views by using http.HandleFunc. It should be placed after the uadmin.Register and before the StartServer.

package main

import (
    "net/http"

    // Specify the username that you used inside github.com folder
    "github.com/username/campaign/views"
    "github.com/uadmin/uadmin"
)

func main() {
    // Campaign Handler
    http.HandleFunc("/campaign/", uadmin.Handler(views.CampaignHandler))

    uadmin.StartServer()
}

Now run your application and go to /campaign/ path in the address bar (e.g. http://0.0.0.0:8080/campaign/). You should see this result.

Part 2: Static Handler¶

Back to Top

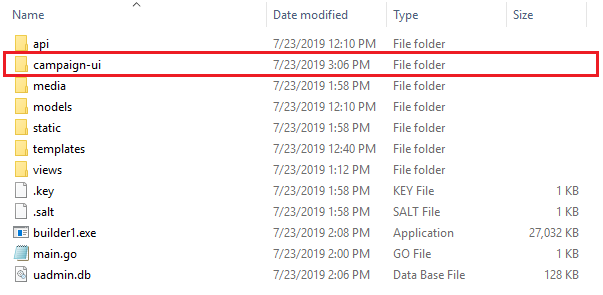

Create a new folder named “campaign-ui” in the project directory.

Search for any images on the Internet. In this example, we will use Donate and Contribute images.

../../_images/contributedonateimages.png

Establish a StaticHandler connection in the main.go by using http.HandleFunc. It should be placed after the uadmin.Register and before the StartServer.

package main

import (
    "net/http"

    // Specify the username that you used inside github.com folder
    "github.com/username/campaign/views"
    "github.com/uadmin/uadmin"
)

func main() {
    // StaticHandler is a function that serves static files.
    http.HandleFunc("/campaign-ui/", uadmin.Handler(uadmin.StaticHandler))

    uadmin.StartServer()
}

Part 3: A/B Test Function for Static¶

Back to Top

Let’s create an A/B test for images in main.go.

package main

import (
    "net/http"

    // Specify the username that you used inside github.com folder
    "github.com/username/campaign/views"
    "github.com/uadmin/uadmin"
)

func main() {
    uadmin.Register()
    abtest := uadmin.ABTest{
        Name:       "Photo Test",
        Type:       uadmin.ABTestType(0).Static(),
        StaticPath: "/campaign-ui/donate.jpg",
        ModelName:  uadmin.ModelList(0),
        Field:      uadmin.FieldList(0),
        PrimaryKey: 0,
        Active:     true,
        Group:      "campaign",
    }
    uadmin.Save(&abtest)

    // Some codes
}

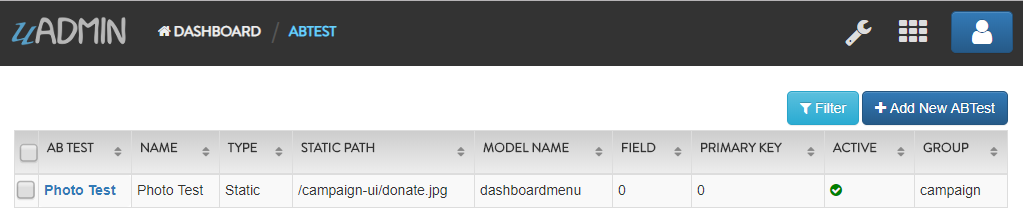

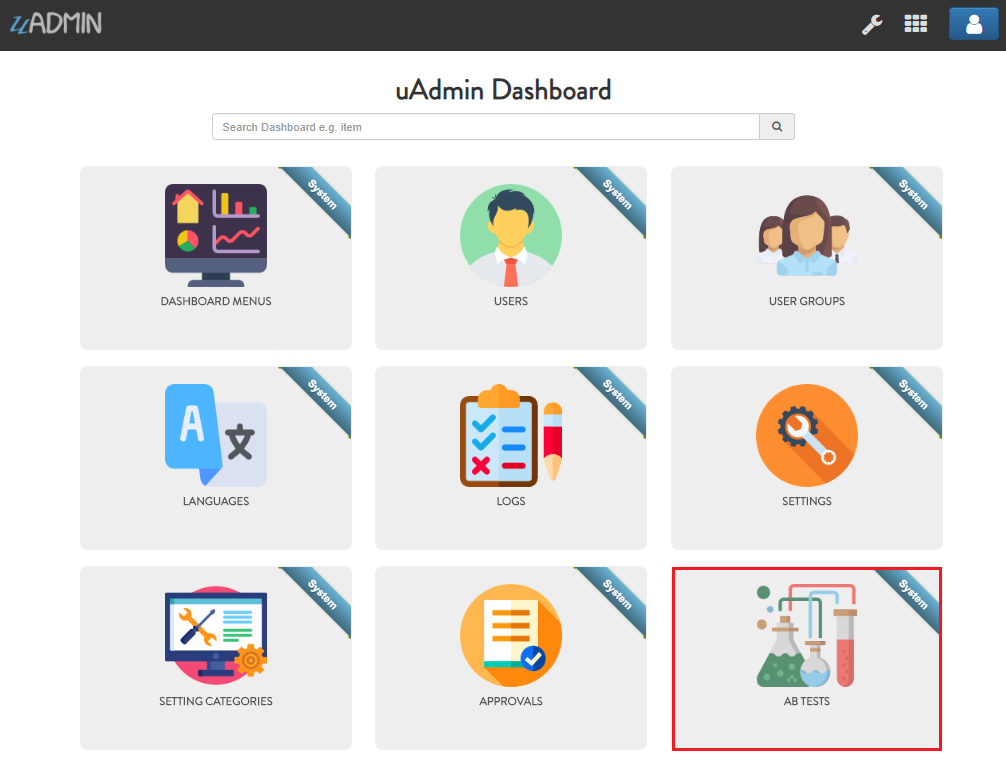

Run your application. From uAdmin dashboard, click “AB Tests”.

As expected, Photo Test record has been created.

Part 4: A/B Test Value Function for Static¶

Back to Top

First of all, delete/comment out the AB Test code that you have created.

// abtest := uadmin.ABTest{
//  Name:       "Photo Test",
//  Type:       uadmin.ABTestType(0).Static(),
//  StaticPath: "/campaign-ui/donate.jpg",
//  ModelName:  uadmin.ModelList(0),
//  Field:      uadmin.FieldList(0),
//  PrimaryKey: 0,
//  Active:     true,
//  Group:      "campaign",
// }
// uadmin.Save(&abtest)

Let’s create two A/B test values in main.go. One is for Donate and the other one is for Contribute.

func main(){
    // Some codes

    donate := uadmin.ABTestValue{
        ABTestID: 1,
        Value:    "/campaign-ui/donate.jpg",
        Active:   true,
    }
    contribute := uadmin.ABTestValue{
        ABTestID: 1,
        Value:    "/campaign-ui/contribute.jpg",
        Active:   true,
    }
    uadmin.Save(&donate)
    uadmin.Save(&contribute)
}

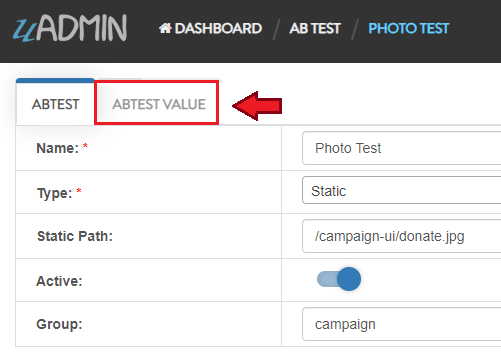

Run your application, go to AB Tests from uAdmin dashboard, and click the Photo Test record. From here, click “ABTEST VALUE” inline.

../../_images/abtestvalueinlinephototest.png

As expected, donate and contribute values were created to Photo Test record.

Part 5: Image Testing¶

Back to Top

Go to index.html in templates folder. Inside the container-fluid class, add an image that referenced to the A/B Test Static Path.

<div class="container-fluid">
    <h1>Campaign</h1>

    <!-- ADD THIS PIECE OF CODE HERE -->
    <img src="/campaign-ui/donate.jpg" />
</div>

Now go to /campaign/ path in the address bar (e.g. http://0.0.0.0:8080/campaign/). You should see this result.

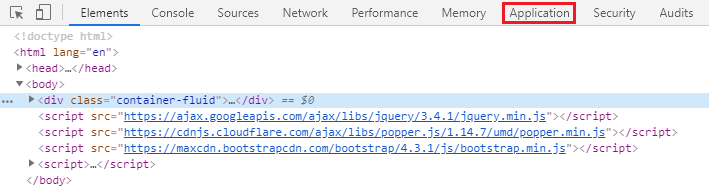

Right click your mouse then select Inspect or just press Ctrl + Shift + I on your keyboard to open the inspect element tab.

From here, click Application tab.

../../_images/applicationinspectelement.png

In Storage, click on Cookies on the left side then select http://localhost:8080. You will see that there is an abt cookie in the table list. In A/B test, we will focus on the value. It is randomly generated. If the value is an even number, we are getting the original image that is the path of the A/B test value is equal to the A/B test static path. Otherwise, we are getting the different image. In addition to this, abt cookie will expire every midnight.

Now let’s delete the abt cookie.

Refresh the webpage and see what happens.

The image displays differently because the abt cookie value is an odd number. Repeat the same process until you get an even number.

It displays an original image once again because the abt cookie value is an even number.

Now go back to A/B Test Value in the Photo Test record. You will see the impression count in each record. This is the number of your visits.

Based on the result, the contribute image has higher impressions than donate ones.

Example #2: Model¶

Part 1: Campaign Info Model¶

Back to Top

Create a file named campaign_info.go inside the models folder with the following codes below:

package models

import (
    "github.com/uadmin/uadmin"
)

// CampaignInfo model ...
type CampaignInfo struct {
    uadmin.Model
    Name   string
    Button string
}

Register the Campaign Info Model in the main.go.

package main

import (
    "net/http"

    // Specify the username that you used inside github.com folder
    "github.com/username/campaign/models"
    "github.com/username/campaign/views"
    "github.com/uadmin/uadmin"
)

func main() {
    uadmin.Register(
        models.CampaignInfo{},
    )

    // Some codes
}

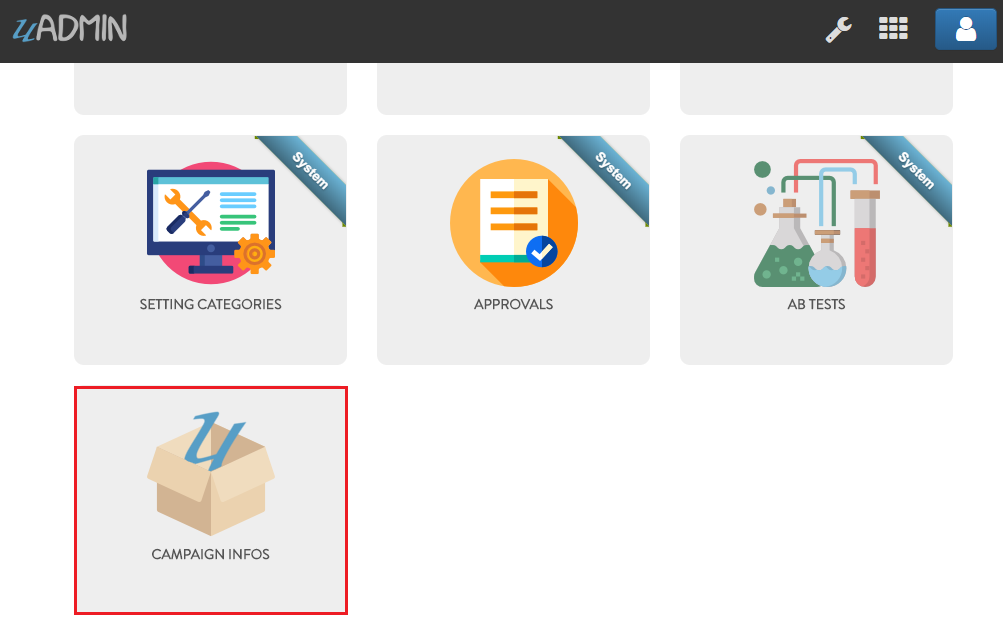

Run your application. From uAdmin dashboard, click on “CAMPAIGN INFOS”.

../../_images/campaigninfohighlighted.png

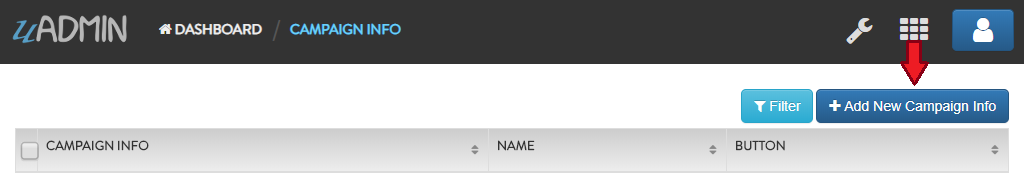

Click “Add New Campaign Info”.

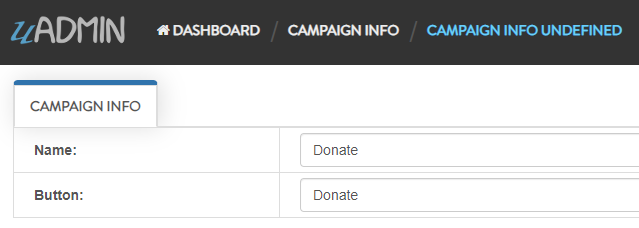

Create a Donate record for Name and Button.

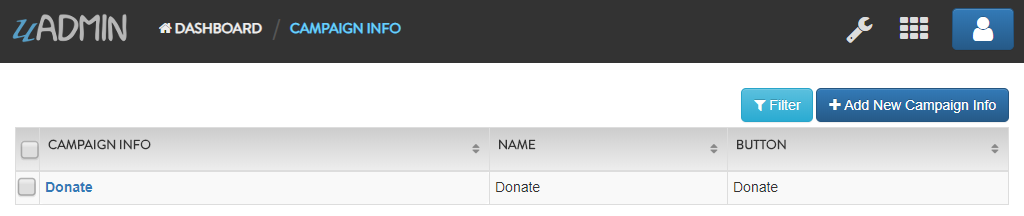

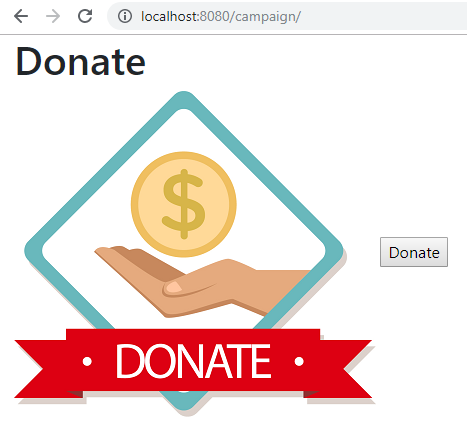

Result

Part 2: A/B Test Function for Model¶

Back to Top

Let’s create an A/B test for name and button in main.go.

package main

import (
    "net/http"

    // Specify the username that you used inside github.com folder
    "github.com/username/campaign/models"
    "github.com/username/campaign/views"
    "github.com/uadmin/uadmin"
)

func main() {
    // Some codes

    button := uadmin.ABTest{
        Name:       "Button Test",
        Type:       uadmin.ABTestType(0).Model(),
        PrimaryKey: 1,
        Active:     true,
        Group:      "campaign",
    }
    uadmin.Save(&button)

    name := uadmin.ABTest{
        Name:       "Name Test",
        Type:       uadmin.ABTestType(0).Model(),
        PrimaryKey: 1,
        Active:     true,
        Group:      "campaign",
    }
    uadmin.Save(&name)

    // Some codes
}

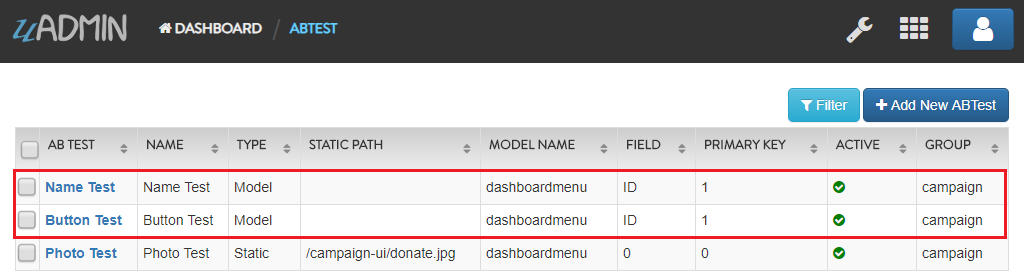

Run your application. From uAdmin dashboard, click “AB Tests”.

As expected, Name and Button Test records were created. In this scenario, we need to assign the model name and field.

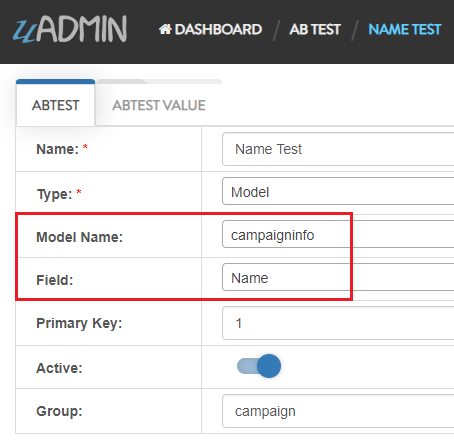

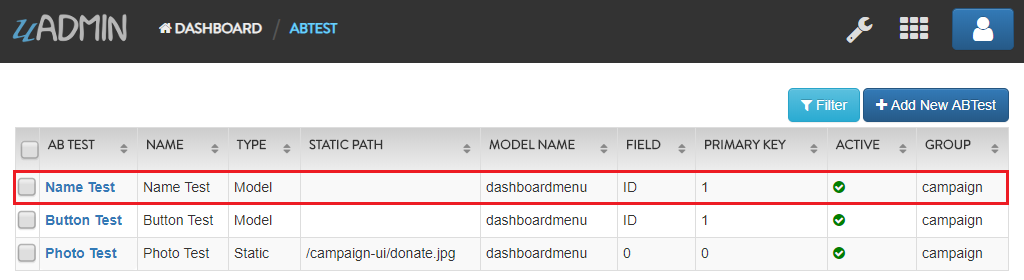

First, click on “Name Test”.

Assign the model name to “campaigninfo” and field to “Name”.

../../_images/nametestmodelnamefield.png

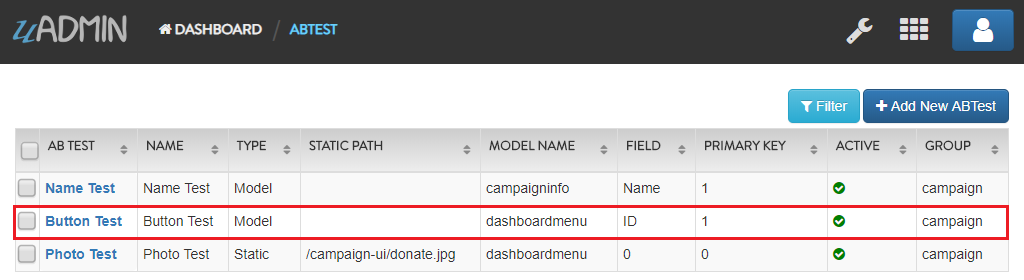

Lastly, click on “Button Test”.

Assign the model name to “campaigninfo” and field to “Button”.

../../_images/buttontestmodelnamefield.png

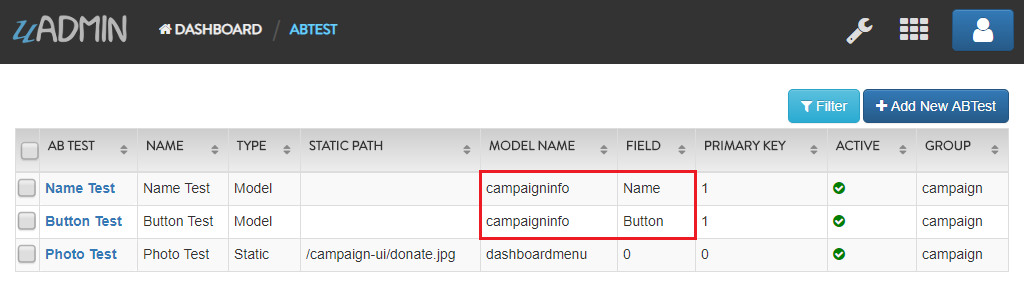

Result

Part 3: A/B Test Value Function for Model¶

Back to Top

First of all, delete/comment out the AB Test code that you have created.

// button := uadmin.ABTest{
//  Name:       "Button Test",
//  Type:       uadmin.ABTestType(0).Model(),
//  PrimaryKey: 1,
//  Active:     true,
//  Group:      "campaign",
// }
// uadmin.Save(&button)

// name := uadmin.ABTest{
//  Name:       "Name Test",
//  Type:       uadmin.ABTestType(0).Model(),
//  PrimaryKey: 1,
//  Active:     true,
//  Group:      "campaign",
// }
// uadmin.Save(&name)

Let’s create four A/B test values in main.go. Two values are for Name and the other two are for Button.

func main(){
    // Some codes

    donatebutton := uadmin.ABTestValue{
        ABTestID: 2, // ID of Button Test
        Value:    "Donate",
        Active:   true,
    }
    contributebutton := uadmin.ABTestValue{
        ABTestID: 2, // ID of Button Test
        Value:    "Contribute",
        Active:   true,
    }
    uadmin.Save(&donatebutton)
    uadmin.Save(&contributebutton)

    donatename := uadmin.ABTestValue{
        ABTestID: 3, // ID of Name Test
        Value:    "Donate",
        Active:   true,
    }
    contributename := uadmin.ABTestValue{
        ABTestID: 3, // ID of Name Test
        Value:    "Contribute",
        Active:   true,
    }
    uadmin.Save(&donatename)
    uadmin.Save(&contributename)
}

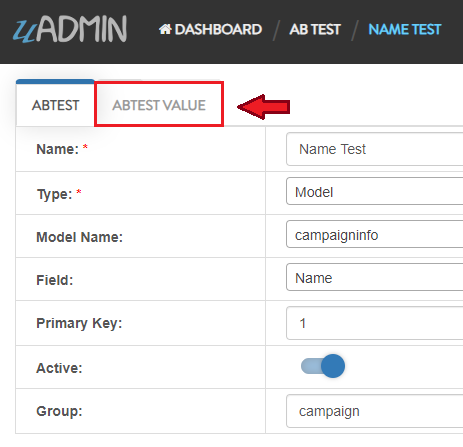

Run your application, go to AB Tests from uAdmin dashboard, and click the Name Test record. From here, click “ABTEST VALUE” inline.

../../_images/abtestvalueinlinenametest.png

As expected, Donate and Contribute values were created to Name Test record.

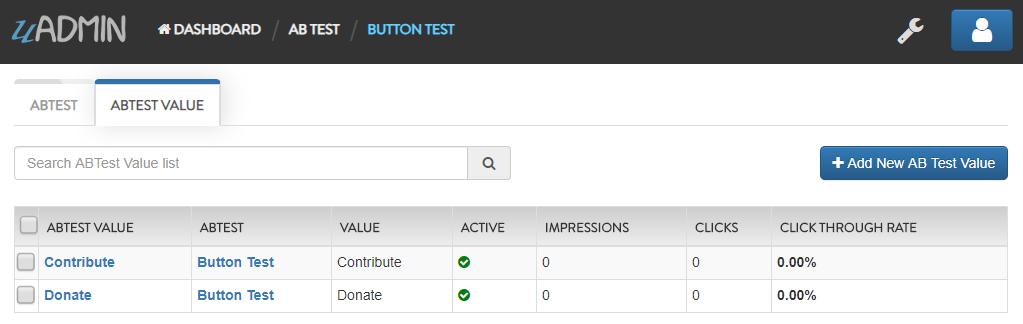

Similarly, they also go with the Button Test record.

Part 4: API Click Handler¶

Back to Top

Create a file named ab_test_click.go inside the api folder with the following codes below:

package api

import (
    "net/http"
    "strings"

    "github.com/uadmin/uadmin"
)

// ABTestClickHandler !
func ABTestClickHandler(w http.ResponseWriter, r *http.Request) {
    // r.URL.Path creates a new path called "/ab_test_click/"
    r.URL.Path = strings.TrimPrefix(r.URL.Path, "/ab_test_click")
    r.URL.Path = strings.TrimSuffix(r.URL.Path, "/")

    // Register a click for a campaign group
    uadmin.ABTestClick(r, "campaign")
}

Establish a connection in the main.go to the API by using http.HandleFunc. It should be placed after the uadmin.Register and before the StartServer.

import (
    "net/http"

    // Specify the username that you used inside github.com folder
    "github.com/username/campaign/models"
    "github.com/username/campaign/views"

    // Import this library
    "github.com/username/campaign/api"

    "github.com/uadmin/uadmin"
)

func main() {
    // Some codes

    // AB Test Click Handler
    http.HandleFunc("/ab_test_click/", uadmin.Handler(api.ABTestClickHandler))
}

api is the folder name while ABTestClickHandler is the name of the function inside ab_test_click.go.

Part 5: Get A/B Test¶

Back to Top

Go to campaign.go in the views folder and apply the following codes below:

package views

import (
    "net/http"

    // Specify the username that you used inside github.com folder
    "github.com/username/campaign/models"
    "github.com/uadmin/uadmin"
)

// CampaignHandler !
func CampaignHandler(w http.ResponseWriter, r *http.Request) {
    // Initialize the Campaign Info model
    campaigninfo := models.CampaignInfo{}

    // Fetch the first active AB Test record in the Campaign Info
    // model
    uadmin.GetABTest(r, &campaigninfo, "id = ?", 1)

    // Pass campaigninfo data object to the specified HTML path
    uadmin.RenderHTML(w, r, "templates/index.html", campaigninfo)
}

Part 6: Button Testing¶

Back to Top

Go to index.html in templates folder. Inside the container-fluid class, make the header name dynamic by applying Go Template. Create a button below the image and make the button name dynamic as well. Below the Latest compiled JavaScript library, initialize an internal script. Inside it, call an AJAX that sends user click response to API. This will increment a user click count in the A/B Test value which will be discussed later.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">

    <!-- Latest compiled and minified CSS -->
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css">

    <title>Campaign</title>
</head>
<body>
    <!-- Make the header name and created button values dynamic -->
    <div class="container-fluid">
        <h1>{{.Name}}</h1>
        <img src="/campaign-ui/donate.jpg" />
        <button class="click-button">{{.Button}}</button>
    </div>

    <!-- jQuery library -->
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.4.1/jquery.min.js"></script>

    <!-- Popper JS -->
    <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.7/umd/popper.min.js"></script>

    <!-- Latest compiled JavaScript -->
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/4.3.1/js/bootstrap.min.js"></script>

    <!-- Send user click response to API -->
    <script>
        $('.click-button').on("click", function(e){
            e.preventDefault();
            e.stopPropagation();
            $.ajax({
                url: "http://localhost:8080/ab_test_click/",
                method: "POST",
                crossDomain: true,
                cache: false,
                success: function (data) {
                    alert("You clicked the button.");
                },
                "error": function(x,y,z){
                // TODO: handle ERROR
                    console.log(x);
                    console.log(y);
                    console.log(z);
                }
            });
        });
    </script>
</body>
</html>

Before you run your application, make sure that your A/B Test value codes were deleted/commented out in main.go.

// donatebutton := uadmin.ABTestValue{
//  ABTestID: 4, // ID of Button Test
//  Value:    "Donate",
//  Active:   true,
// }
// contributebutton := uadmin.ABTestValue{
//  ABTestID: 4, // ID of Button Test
//  Value:    "Donate",
//  Active:   true,
// }
// uadmin.Save(&donatebutton)
// uadmin.Save(&contributebutton)

// donatename := uadmin.ABTestValue{
//  ABTestID: 5, // ID of Name Test
//  Value:    "Donate",
//  Active:   true,
// }
// contributename := uadmin.ABTestValue{
//  ABTestID: 5, // ID of Name Test
//  Value:    "Donate",
//  Active:   true,
// }
// uadmin.Save(&donatename)
// uadmin.Save(&contributename)

Now run your application and go to /campaign/ path in the address bar (e.g. http://0.0.0.0:8080/campaign/). You should see this result.

Let’s click the Donate button and see what happens.

../../_images/alertboxmessageuserclick.png

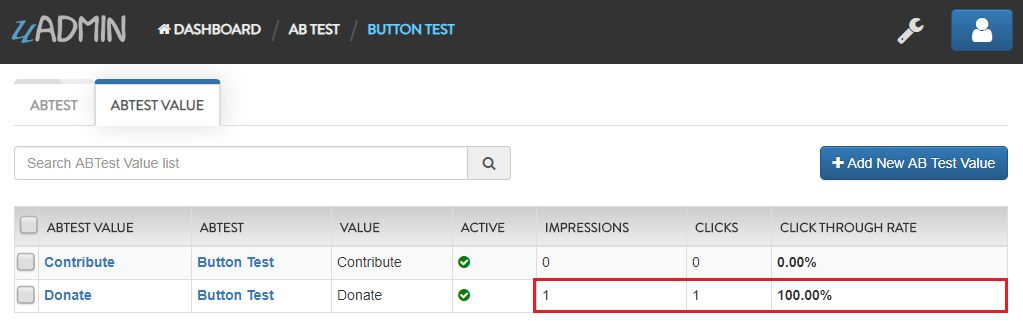

The alert box message appears on your screen. If you go to A/B Test Value inline in the Button Test record, you will see that the number of clicks in Donate record is 1 and the Click Through Rate is 100% because the number of impressions and clicks are equal.

Right click your mouse then select Inspect or just press Ctrl + Shift + I on your keyboard to open the inspect element tab.

From here, click Application tab.

../../_images/applicationinspectelement2.png

In Storage, click on Cookies on the left side then select http://localhost:8080. You will see that there is an abt cookie in the table list. In A/B test, we will focus on the value. It is randomly generated. If the value is an even number, we are getting the original value from Campaign Info model in the Name and Button. Otherwise, we are getting the different results. In addition to this, abt cookie will expire every midnight.

Now let’s delete the abt cookie.

Refresh the webpage and see what happens.

../../_images/abtcookieoddvaluemodel.png

We get a different result because the abt cookie value is an odd number. Repeat the same process until you get an even number.

../../_images/abtcookieevennumbermodel.png

They display original values once again because the abt cookie value is an even number.

Now go back to A/B Test Value in the Name and Button Test records. You will see the impression count, click count, and Click Through Rate in each record.

Name Test Result

Button Test Result

Based on the results, the contribute record has higher impressions than donate ones while the donate ones has higher clicks and click through rate than contribute ones for both Name Test and Button Test records.

uadmin.ABTest¶

uadmin.ABTest Examples¶

Example #1: Static¶

Part 1: HTML Template¶

Part 2: Static Handler¶

Part 3: A/B Test Function for Static¶

Part 4: A/B Test Value Function for Static¶

Part 5: Image Testing¶

Example #2: Model¶

Part 1: Campaign Info Model¶

Part 2: A/B Test Function for Model¶

Part 3: A/B Test Value Function for Model¶

Part 4: API Click Handler¶

Part 5: Get A/B Test¶

Part 6: Button Testing¶

Table of Contents

Previous topic

Next topic

This Page
